Pacbrake

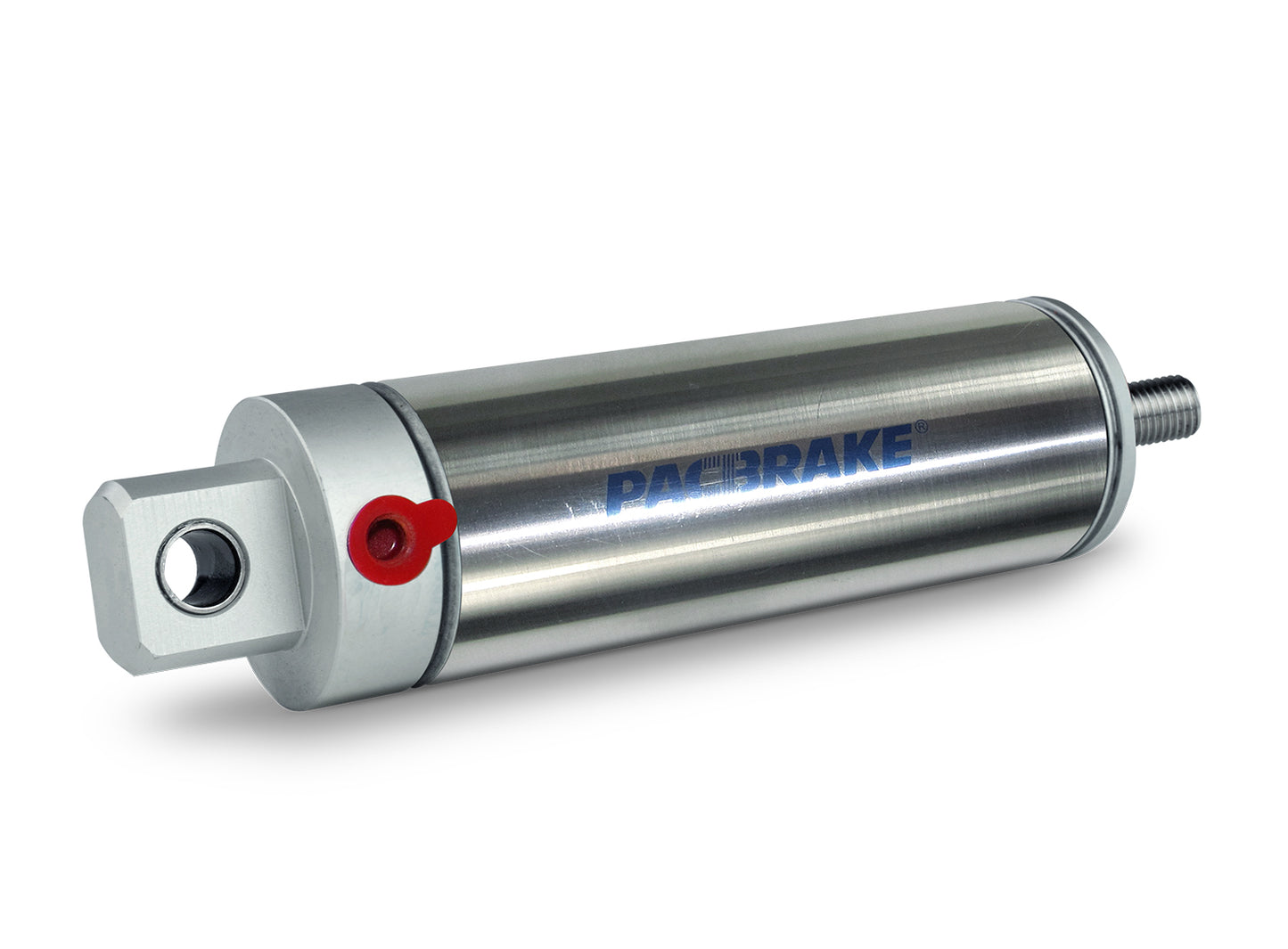

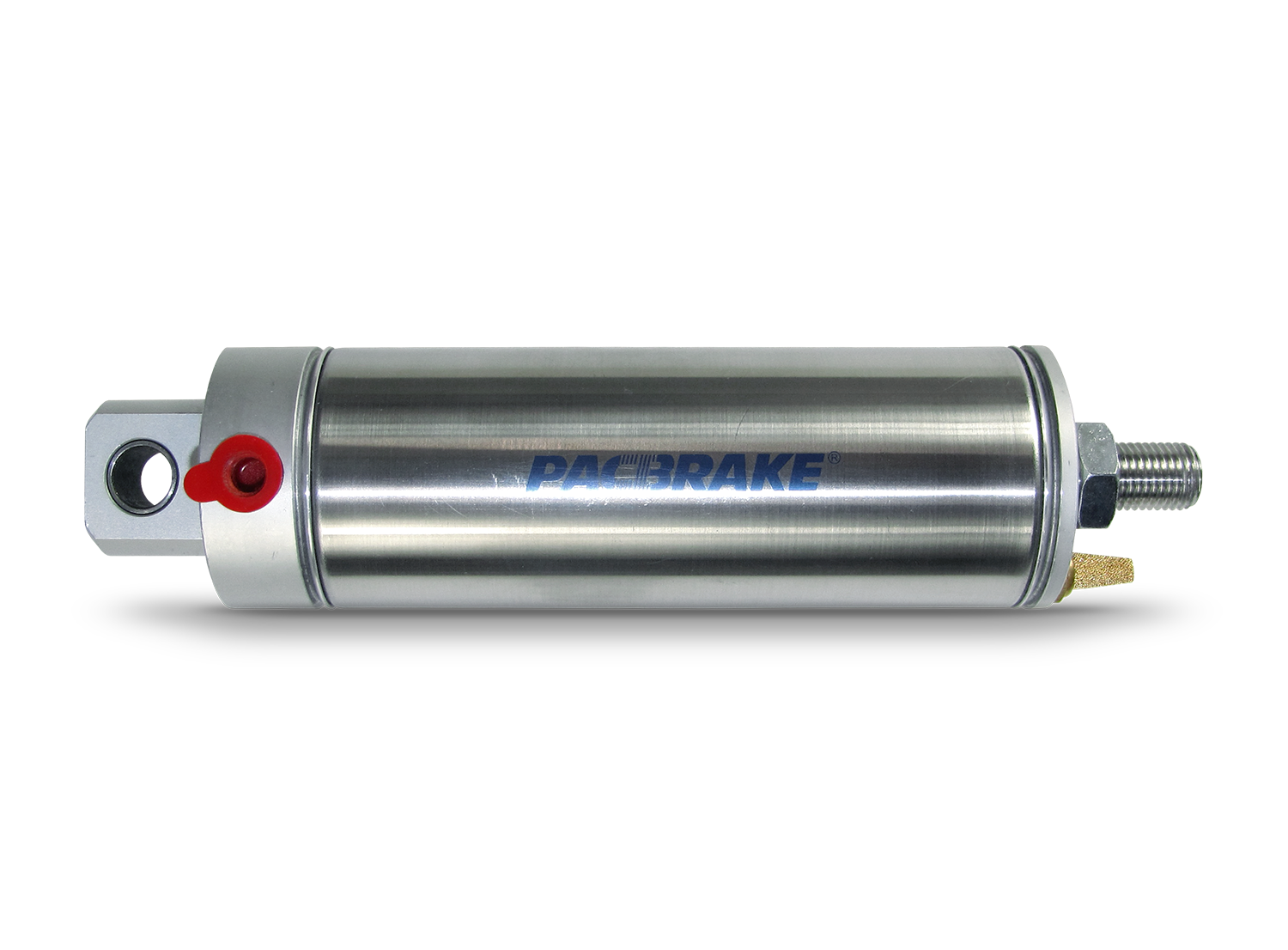

C11596 Pneumatic Single Acting Cylinder
C11596 Pneumatic Single Acting Cylinder
Regular price
$211.14 CAD
Regular price
$211.14 CAD
Sale price
$211.14 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Constructed with a stainless steel body and shaft, these actuators have excellent corrosion resistance enabling them to withstand demanding conditions. Single acting cylinders are designed with return springs which can act as both a simpler method of control, as well as a fail-safe measure.
- Spring return, normally retracted
- Clear Anodized, front & rear end caps
- Clevis mount
- Operating pressure 100-150 psi
- Buna HBNR seal
- Replacement Part (Non-repairable)
Attributes
Attributes
- Brand Name: Pacbrake
- GTIN: 00628480001890
- Cylinder Body Material: AISI 304 Stainless Steel
- Fitment: Universal
- Operating Pressure: 100-150
- Piston Material: 6061-T6 Aluminum
Extended Information
Extended Information
- Country of Origin: CA
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Released
Packing Information
Packing Information
- Quantity of Each: 1
- Package UOM: BX
- Dimension: 8 x 6 x 4 inches
- Weight: 2 POUNDS
